OVERVIEW

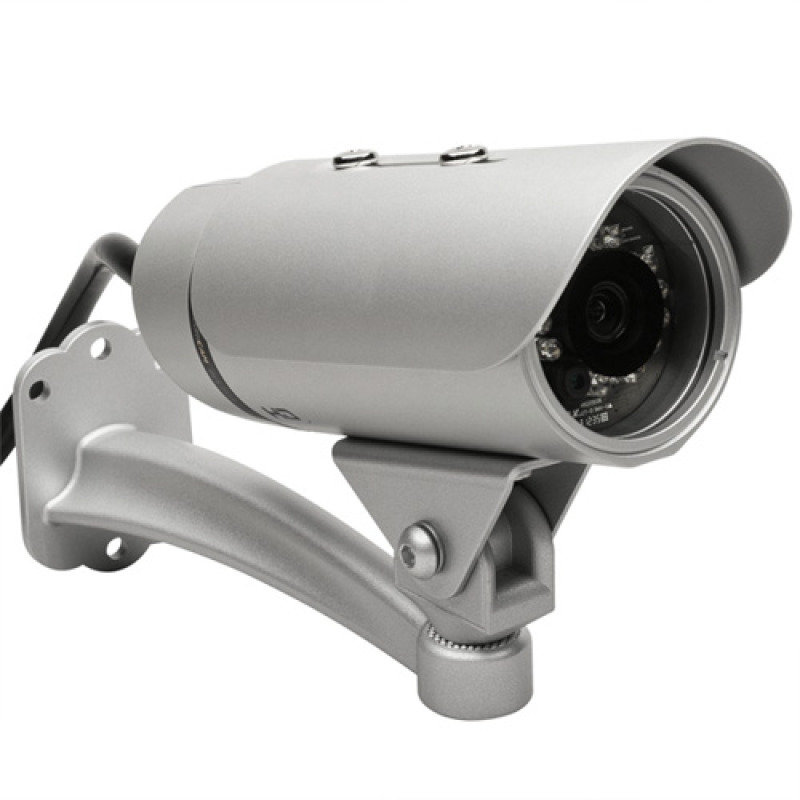

The D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet, capable of capturing video in both day and night environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. This feature allows the camera to capture crisp colour images during the daytime and detailed grayscale images at night or in or low-light conditions.
SPECIFICATIONS Features
Superior Performance
* 1/2.7” 2 megapixel CMOS sensor
* Real-time H.264/ MPEG-4/ MJPEG
* Max. resolution of 1920x1080 at 15 fps
Crystal Clear Feed
* Four (4) simultaneous streams
* Built-in 4 mm, F1.5 fixed lens
* 15M IR illumination distance
* IR-Cut Removable filter for day/night vision
Robust Security
* Tamper detection
* Motion detection
* Privacy mask
* IPv6, 802.1x, QoS, CoS
* HTTPS secured streaming
Full Compatibility
* Samba client
* IP66 weatherproof
* ONVIF compliant
* 12V DC, 24V AC and PoE
* DI/DO socket
Technical Specifications General
Hardware Profile
* 1/2.7” 2 Megapixel progressive CMOS sensor
* 15 metre IR illumination distance
* Built-in Infrared-Cut Removable (ICR) Filter module
* 4 mm fixed lens , F1.5
* Shutter speed: 1/5 - 1/32,000 seconds
* Angle of view: 77.4° (H), 45.1° (V), 88° (D)
* Minimum object distance: 0.4 M
Image Features
* Configurable image size, quality, frame rate, and bit rate
* Time stamp and text overlays
* 3 configurable motion detection windows
* Min Illumination: 0.12 Lux (day mode), 0 Lux (night mode) with IR LED
* 5 configurable privacy masks
* Flip & mirror
* Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
Functionality
Video Compression
* H.264/MPEG4/MJPEG format compression simultaneously
* JPEG for still image
* H.264/MPEG-4 multicast streaming
Video Resolution
* 1920 x 1080 @ 15 fps
* 640x480 @ 30 fps
* 320x240 @ 30 fps
* 1280x800 @ 30 fps
* 1280x720 @ 30 fps
Network Protocols
* IPv4
* IPv6
* TCP/IP
* UDP
* ICMP
* DHCP Client
* NTP Client (D-Link)
* DNS Client
* DDNS Client (D-Link)
* SMTP Client
* FTP Client
* HTTP / HTTPS
* Samba Client
* PPPoE
* UPnP Port Forwarding
* RTP/RTSP/RTCP
* IP filtering
* LLTD
* CoS/QoS
* SNMP
* IGMP
* 802.1x
* ONVIF Compliant
Security
* Administrator and user group protection
* Password authentication
* HTTP and RTSP digest encryption
* HTTPS streaming
System Requirements
* Microsoft Windows 2000, XP, Vista, 7
* Internet Explorer 7 or higher
D-ViewCam™ System Requirements
* Operating System: Microsoft Windows ® 7/Vista/XP
* Web Browser: Internet Explorer 7 or higher
* Protocol: Standard TCP/IP
Event Management
* Motion detection
* Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
* Supports multiple HTTP, SMTP and FTP servers
* Multiple event notification
* Multiple recording methods for easy backup
Surveillance Software Functions
* Remote management/control of up to 32 cameras
* Viewing of up to 32 cameras on one screen
* Supports all management functions provided in web interface
* Scheduled motion triggered and manual recording options
External Device Interface
* DI and DO for external sensor and alarm
Physical
Dimensions
* 68 x 42 x 51 mm
Weight
* 808 grams
Power
* Input: 12 V DC 1.25 A, 24 V AC, 50/60 Hz, 802.3af PoE
Max. Power Consumption
* 6.3W
Temperature
* Operating temperature-20 to 50 °
* Storage:-20 to 70 °
Humidity
* Operating: 0% to 90% non-condensing
Certifications
* CE (Class A)
* CE LVD (EN60965-1)
* FCC (Class A)
* ICES-003
* C-Tick
