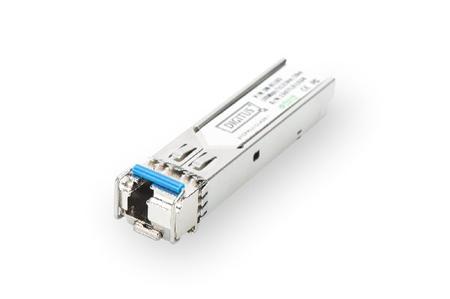

Digitus 155 Mbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector 100Base-BX, Tx1310nm/Rx1550nm

DIGITUS 155 Mbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector 100Base-BX, Tx1310nm/Rx1550nm

The plug and play fiber connection
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch,
converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes
possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures
a compatibility to third party manufacturers.
Package Content
l SFP module
l  Mini GBIC SFP (Small Form Factor Pluggable) module
l  Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann,
Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
l  Bidirectional WDM Module - Only one fiber is needed
l  High quality and excellent reliability
l  155 Mbps maximum data rate
l  Class 1 laser product compliant with EN 60825-1
l  Easy plug-and-play installation
l  MSA (Multi Source Agreement) compliant
l  Hot pluggable

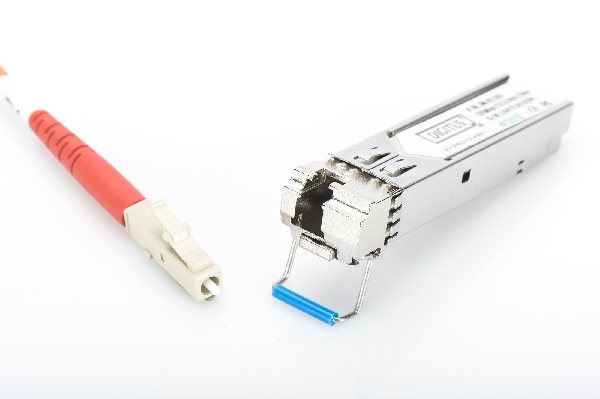

l  Connector: 1x LC Simplex
l  Wavelength: Tx 1310nm / Rx 1550nm
l  Transmission Power: Minimum -15 dBm, Maximum -8 dBm
l  Sensitivity Receiving Power: Minimum -32 dBm
l  For a Distance of up to 20km
l  Suitable for 09/125µm Singlemode Fiber Cables
l  Safe fast-locking mechanism
l  3.3V power supply
l  Suitable Module for Opposite Side: DN-81104
