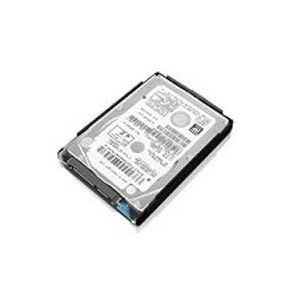

Lenovo TP HDD 500GB 7200rpm SATA3 7mm, 2,5"

Lenovo TP HDD 500GB 7200rpm SATA3 7mm, 2,5"

kompatibilní s:

ThinkPad: Yoga 460, L560, P50, P70

TECHNICAL INFORMATION
Form factor: 2.5inch
SATA Revision 6Gbps
Rotational Speed: 7200 RPM
Interface data transfer speed: 6Gb/s
Internal transfer rate: 871~1850 Mbit/s
Butter size: 16MB
Load/unload cycles: 600,000
Average seek: 12mS
Power specification
- Spin up: 5.5W Max
- Read/Write(average): 2.1W
- Seek(average): 2.1W
- Idle(average): 1.0W
- Sleep(average): 0.18W

PERFORMANCE SPECIFICATIONS
Interface: Serial ATA
Capacity: 500GB
Data Transfer rate: 6 Gbps
Internal transfer rate: 871~1850 Mbit/s
Operating shock: 350G, 2ms, Half Sine Wave
Non-operating shock: 900G, 1mS; 200G, 11mS , Half Sine Wave
Operating Vibration: 1.0G 5~500Hz
Non-operating vibration: 5.0G 15~500Hz

PHYSICAL SPECIFICATIONS
Approximate height: 7.0 mm (0.28 in)
Approximate width: 69.85 mm (2.75 in)
Approximate depth: 100.2mm (3.15 in)
Approximate weight: 92 g (0.20lb)
Full Packaging Size:
Approximate height: 53 mm (2.087 in)
Approximate width: 144 mm (5.669 in)
Approximate depth: 177 mm (6.969 in)
Approximate weight: 220 g (0.265 lb)

OPERATING ENVIRONMENT
Temperature: 5 deg to 55 deg (B) (41 deg to 131 deg (F))
Relative humidity: 8% to 90% (non-condensing)
Non-OPERATING ENVIRONMENT
Temperature: -40 deg to 65 deg (B) (-40 deg to 149 deg (F))
Relative humidity: 5% to 95%
AGENCY APPROVALS
CE
UL
KC
TUV
BSMI
C-Tick
CUL
RoHS
CABLE ORDERS REQUIRED: No

INSTALLATION TIME: Approximately 15 minutes
PACKAGING: One box
SHIPMENT GROUP
ThinkPad 500G 7200rpm 7mm 2.5" Hard Drive
Warranty Poster
